Material
Polypropylene (PP)

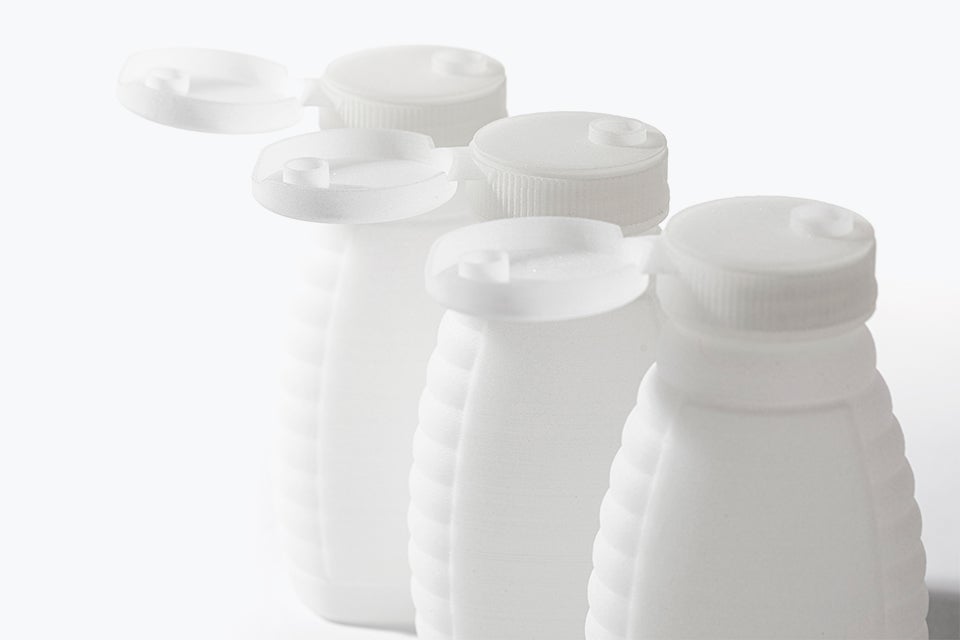

Polypropylene (PP) is one of the most versatile and common choices for industrial production, and 3D-printed PP has similar properties to injection-molded PP. Tough, fatigue-resistant, lightweight, and with exceptionally high elongation at break, PP is an ideal choice for functional prototypes of snap-fit assemblies or living hinges in automotive components, packaging, and consumer goods.
Technical specifications
| Maximum part dimensions | 480 x 480 x 430 mm |
| Standard accuracy | ±0.35% (XY) up to ±1.2% (Z) with lower limits on ±0.35 mm (XY) up to ±0.5mm (Z) |
| Layer thickness | 0.12 mm |
| Minimum wall thickness | 1 mm, living hinges are possible at 0.4 mm (all structures under 0.8 mm must be designed in a flat, uncurved position and oriented parallel to XY plane for correct building) |
| Minimum detail size | 0.3 mm |
| Interlocking or moving parts | Yes |
| Internal channels | Yes |
| Surface structure | Grainy structure |
Datasheet
| PARAMETER | VALUE | UNIT | METHOD |
| - | 0.84 | g/cm³ | |
| DIN EN ISO 527 | 21 | MPa | |
| DIN EN ISO 527 | 905 | MPa | |
| DIN EN ISO 178 | 22.8 | MPa | |
| DIN EN ISO 178 | 700 | MPa | |
| DIN EN ISO 527 | 529 | % | |
| ISO 75 (@1.80 MPa) | 52 | °C |
Actual values may vary with build conditions and in relation to the part’s geometry and orientation.
Please get in touch with our team for more information and guidance.
Finishing degrees
The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.
Normal
- Loose powder removed
- Sandblasted
