Material

ABS-like Polyurethanes

Vacuum-cast ABS-like polyurethanes resemble injection-molded ABS, making them ideal for high-quality prototypes or small series of end-use parts such as product housings or covers. Our wide range of materials offers a choice of properties, including materials that are flame retardant (FAR 25.853-compliant, UL Yellow Card-certified), food-safe, and UV-stable, as well as a variety of finishes. For use with silicone molds.

Talk to our team

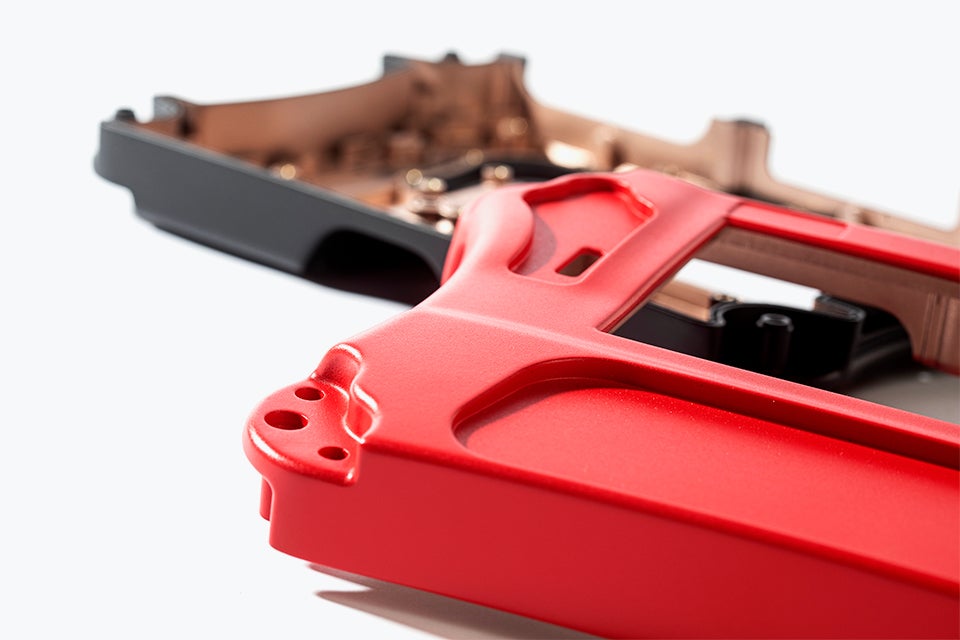

Close-up view of a red and black part of a portable crack detector, vacuum casted using the ABS-like polyurethane material

Technical specifications

Maximum part dimensions	1,900 x 900 x 750 mm (maximum part volume: 10 liters)
Standard accuracy	±0.3% (with a lower limit on ±0.3 mm on dimensions smaller than 100 mm)
Layer thickness	0.1 mm for master model
Minimum wall thickness	0.75 – 1.5 mm depending on the material and geometry
Minimum detail size	0.5 mm depending on complexity and finishing degree
Interlocking or moving parts	No
Internal channels	No
Surface structure	High-quality surface, comparable to injection molding

Datasheet

Please select your preferred material:

PARAMETER	VALUE	UNIT	METHOD
Density ISO 2781	1.14	g/cm³	ISO 2781
Hardness at 25°C ISO 868	80	Shore D	ISO 868
Hardness at 60°C ISO 868	>65 (120°C)	Shore D	ISO 868
Tensile strength ISO 527	60	MPa	ISO 527
Tensile modulus ISO 527	-	MPa	ISO 527
Bending strength ISO 178	80	MPa	ISO 178
Bending modulus ISO 178	2,300	MPa	ISO 178
Elongation at break ISO 527	11	%	ISO 527
Impact strength ISO 179/2D (Charpy)	>60 Charpy	kJ/m²	ISO 179/2D (Charpy)
Glass transition temperature ISO 11359-2	> 120	°C	ISO 11359-2
Heat deflection temperature ISO 75 Ae	110	°C	ISO 75 Ae
Max casting thickness -	5 – 10	mm	-
Color -	Black		-
Colorability in mass -	-	-/+/++/+++	-
Special purpose -	High thermal resistance		-
Thermoplastic similarity -	ABS		-

Actual values may vary based on casting conditions, including factors such as the part's geometry, design, and orientation within the mold

Please get in touch with our team for more information and guidance

Download Flammability Certificate for HMPU14

Download as PDF

Finishing degrees

The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

Basic finish
