VeroClear

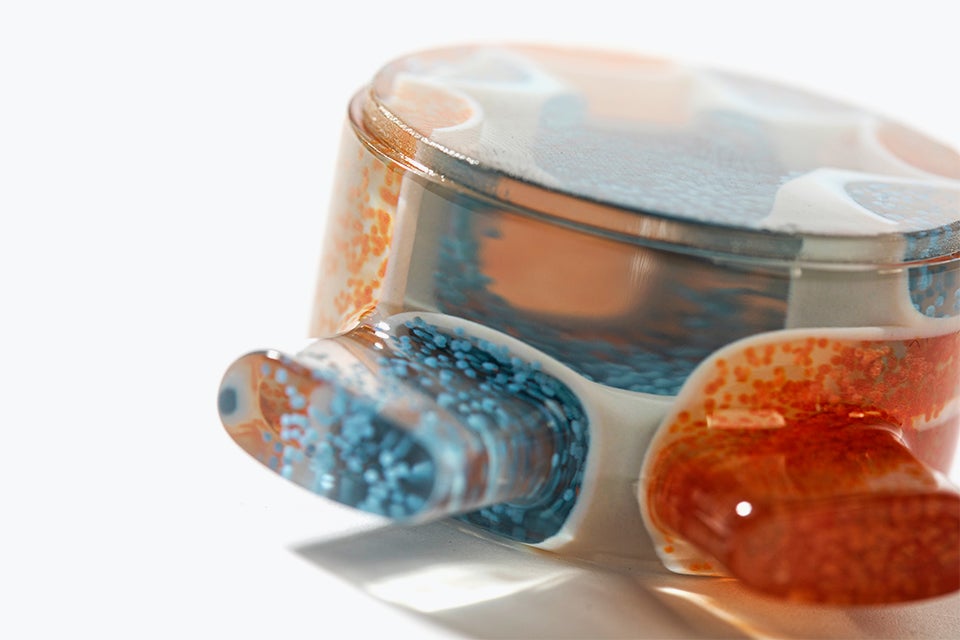

VeroClear is a transparent, rigid material that offers exceptional surface detail. Its high dimensional stability and smooth surface make it ideal for fine-detailed models, or prototypes for clear parts or parts requiring light transmission or flow monitoring. To create an endless variety of translucent shades or patterns, VeroClear can be combined with colored PolyJet materials.
기술 사양
| Maximum part dimensions | 490 x 390 x 200 mm 350 x 250 x 100 mm (online orders) |
| Standard accuracy | 0.1 – 0.3 mm (varies depending on geometry, part orientation and print size) |
| Layer thickness | 0.032 mm |
| Minimum wall thickness | 1 mm |
| Minimum detail size | 0.5 mm |
| Interlocking or moving parts | Yes |
| Internal channels | No |
| Surface structure | Slightly rough, matte surface |
데이터시트
| 매개 변수 | 가치 | 구성 단위 | 방법 |
| ASTM D792 | 1.18 | g/cm³ | |
| ASTM D638 | 65 | MPa | |
| ASTM D790 | 92 | MPa | |
| ASTM D790 | 2,700 | MPa | |
| ASTM D256 | 25 | J/m | |
| ASTM D638 | 2.5 | GPa | |
| ASTM D638 | 25 | % | |
| ASTM D2240 | 86 | Shore D | |
| ASTM D648 (@1.82 MPa) | 50 | °C | |
| DSC (SSYS) | 54 | °C |
Actual values may vary with build conditions and in relation to the part’s geometry and orientation. Shore values are provided by Stratasys.
Please get in touch with our team for more information and guidance.
Finishing degrees
The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

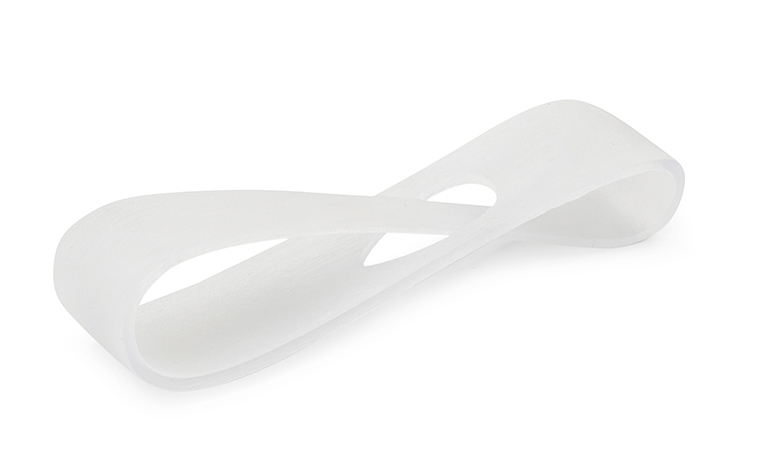

Basic finish
- Gel-like support material removed by water-jetting

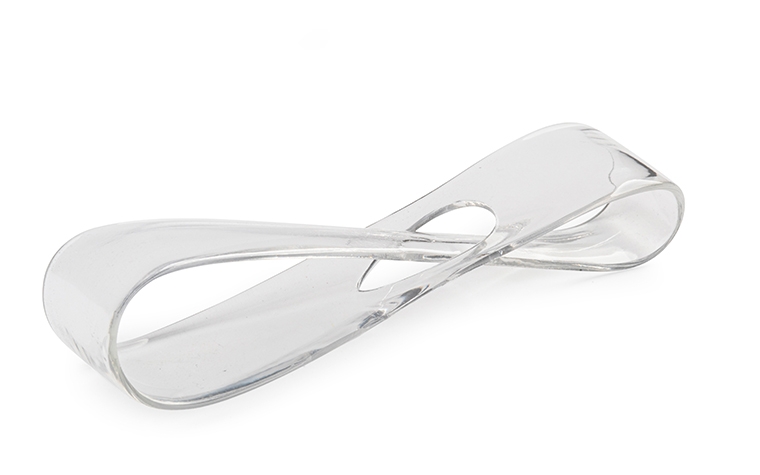

Cosmetic transparent
- Gel-like support material removed by water-jetting
- All surfaces sanded with P400
- Transparent UV varnish sprayed on all reachable surfaces
- Building layers not visible
- For complete finishing to achieve transparency, all surfaces need to be accessible
