기술 사양
| Maximum part dimensions | 350 x 350 x 350 mm 100 x 100 x 100 mm (Fast Lane orders) |
| Standard accuracy | ±0.2% (with a lower limit of ±0.2 mm) |
| Layer thickness | 0.125 – 0.15 mm |
| Minimum wall thickness | 1 – 3 mm depending on part dimensions |
| Minimum detail size | 0.5 mm |
| Interlocking or moving parts | No |
| Internal channels | Yes, but support structures may remain inside channels |
| Surface structure | Visible building layers; white material |
데이터시트
| 매개 변수 | 가치 | 구성 단위 | 방법 |
| - | 1.19 | g/cm³ | |
| ASTM D638 | 50 | MPa | |
| ASTM D638 | 2,765 | MPa | |
| ASTM D790 | 68 | MPa | |
| ASTM D790 | 2,205 | MPa | |
| ASTM D256 (Notched,Izod) | 25.0 | J/m | |
| ASTM D638 | 20 | % | |
| ASTM D2240 | 81 | Shore D | |
| ASTM D648 (@1.82 MPa) | 49 | °C |
Actual values may vary with build conditions and in relation to the part’s geometry and orientation.
Please get in touch with our team for more information and guidance.
Finishing degrees
The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

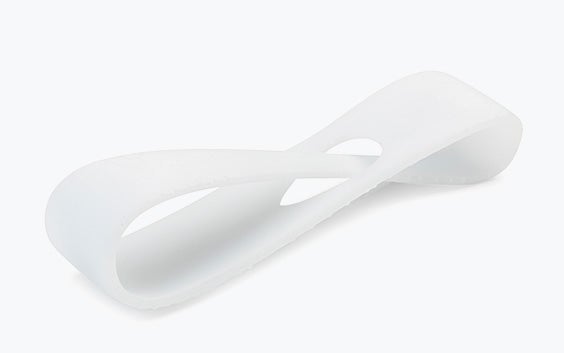

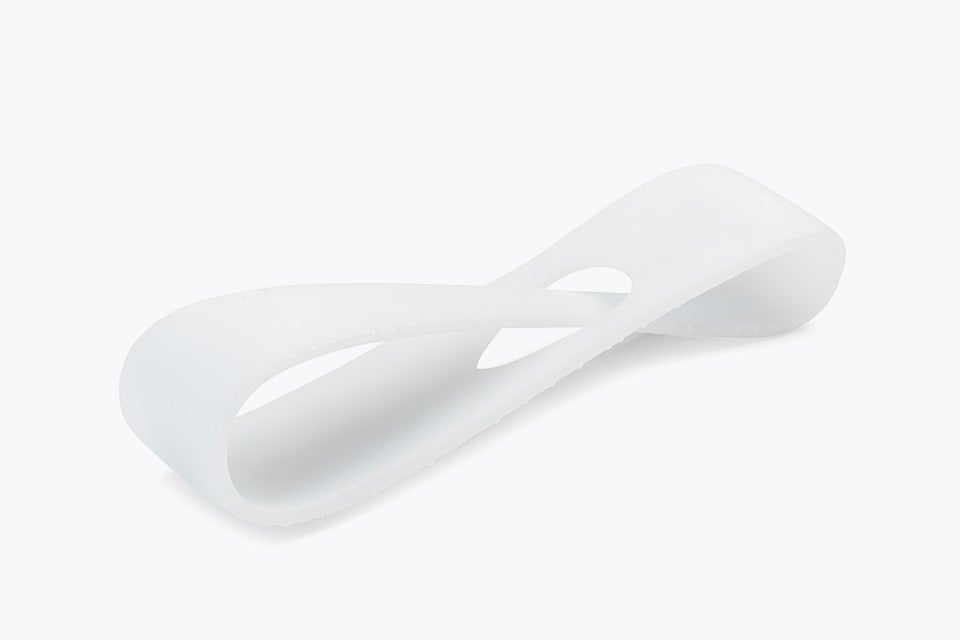

Basic finish
- Basic cleaning without sanding or sandblasting
- Supports removed, support marks still visible
- Cured
- Building layers still visible
- Fast Lane service available for online orders of TuskXC2700W
Support marks removed
- Supports removed
- Cured
- Support marks sanded with P240
- Building layers still visible
- Fast Lane service available for online orders of TuskXC2700W
Support marks removed + sandblasted
- Supports removed
- Cured
- Support marks sanded with P240
- Building layers still visible
- Sandblasted
- Fast Lane service available for online orders of TuskXC2700W
Normal A-side/2-side
- Supports removed
- Cured
- A-side or both sides sanded with P240
- Sandblasted
- Building layers not visible
Additional finishes
Additional finishes are available on request:
- Biocompatible
- Primer ready to paint
- Primer + paint (texture D30/D50)
- Sealing varnish
- Glass-fiber reinforced
- Chrome look
- Metal plating technical
- Metal plating cosmetic
To discuss your needs, please get in touch via the link below.
