PA 12S

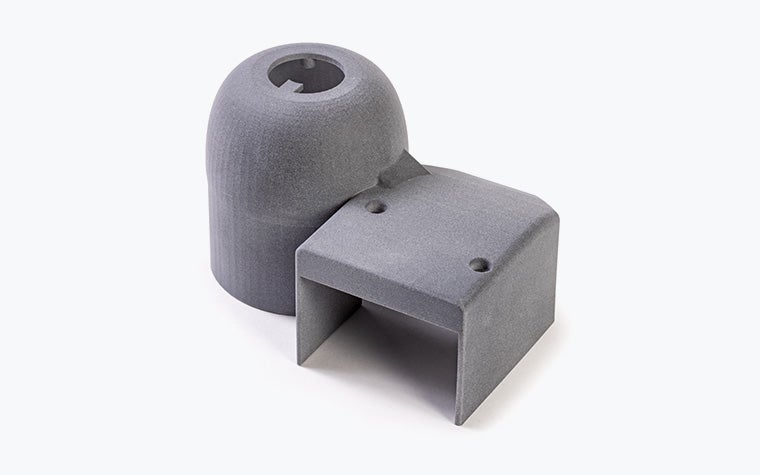

PA 12S combines an excellent level of detail and dimensional accuracy with minimal post-processing. Ideal for prototyping and series production parts, it's particularly suited to those with aesthetic requirements. PA 12S shines in applications like cosmetic parts, rigid orthotics and braces, aesthetic housings, production aids, and drill guides, offering great value to consumer goods and medtech production lines.
기술 사양
| Maximum part dimensions | 370 x 274 x 375 mm |
| Standard accuracy | ±0.3% (with a lower limit of ±0.3 mm) |
| Layer thickness | 0.09 mm |
| Minimum wall thickness | 1 mm |
| Minimum detail size | 0.25 mm |
| Interlocking or moving parts | Yes |
| Internal channels | Yes |
| Surface structure | Smooth structure with a light gray color |
데이터시트
| 매개 변수 | 가치 | 구성 단위 | 방법 |
| ASTM D638 | 45 | MPa | |
| ASTM D638 | 1,700 | MPa | |
| ASTM D638 | 10 | % | |
| ASTM D638 | 12 | % | |
| ASTM D256 | 3.2 | kJ/m² | |
| ASTM D792 | 0.98 | g/cm³ | |
| ASTM D648 (@0.45 MPa) | 165 | °C |
Actual values may vary with build conditions and in relation to the part’s geometry and orientation.
Please get in touch with our team for more information and guidance.
Finishing degrees
The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

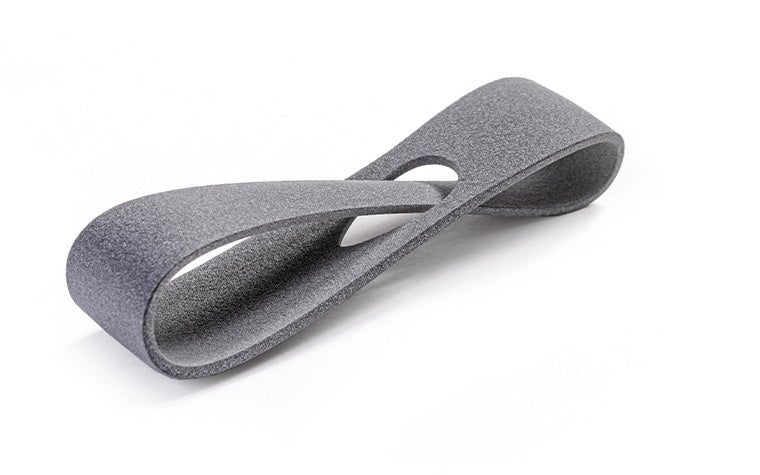

Normal
- Loose powder removed
- Sandblasted

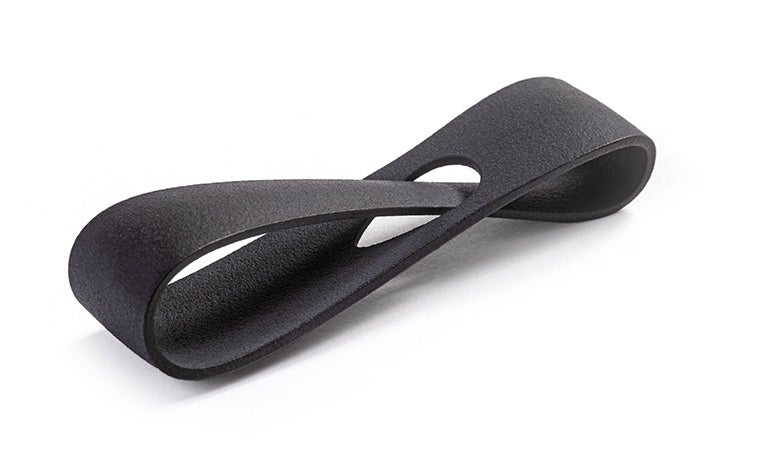

Color dyed
- Loose powder removed
- Sandblasted
- Parts color dyed by being submerged in a bath containing black pigment
- Color intensity may vary due to the unique nature of the production process, e.g. parameters, build position, light deflection, and differences caused by post-processing
- This finish is possible for parts with maximum dimensions of 360 x 274 x 375 mm
Additional finishes
Additional finishes are available on request:
- Color dyed + spray paint (black)
Train and learn
Get more from your next project with helpful resources dedicated to PA 12S (MJF) and Multi Jet Fusion.
