Technology
PolyJet
In addition to its high detail and smooth surfaces, PolyJet offers the unique ability to print precision parts and assemblies with multiple materials, all in a single build. A single part can contain different colors, levels of transparency, and diverse physical and mechanical properties, making PolyJet ideal for complex visual models and prototypes.
Why work with Materialise Manufacturing?
When you need to bring a complex idea to life, you can count on Materialise's broad in-house expertise in PolyJet technology to help you develop unique parts that other 3D printing technologies can’t create in one piece. Whether you want to combine different PolyJet materials and colors, or blend materials to achieve specific characteristics, we make sure your end product exceeds your expectations.
Discover applications of PolyJet
技術仕様
| Maximum build dimensions | Dimensions are unlimited as components may be composed of several sub-parts. The maximum build envelope is 490 x 390 x 200 mm |
| Standard accuracy | 0.1 – 0.3 mm (varies depending on geometry, part orientation, and print size) |
| Layer thickness | 0.032 mm |
| Minimum wall thickness | 1 mm |
| Surface structure | Unfinished parts have a smooth surface, which can be further smoothed through various post-production finishes |
Materials
Choose from a broad selection of materials when you come to Materialise for your PolyJet projects.
Vero
技術
PolyJet
詳細

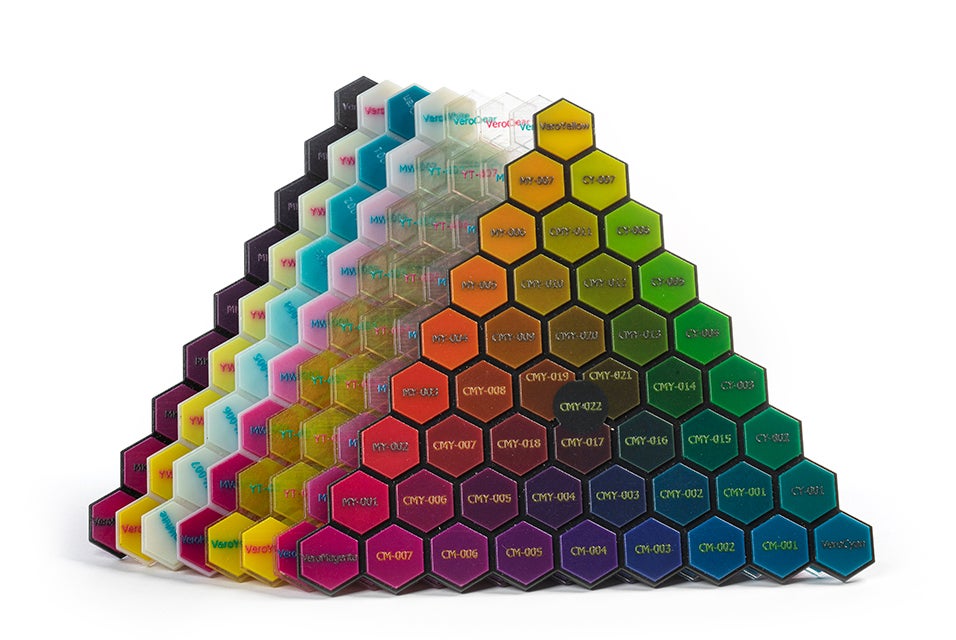

Vero is a rigid, opaque material that offers excellent detail and can be blended with other PolyJet materials to determine toughness, rigidity, or translucency. Available in multiple colors.
主な特徴
- Rigid, general-purpose material
- High level of surface detail
- Can be combined with other PolyJet materials to alter toughness, rigidity, or translucency
- Max part dimensions: 490 x 390 x 200 mm
VeroClear
技術
PolyJet
詳細

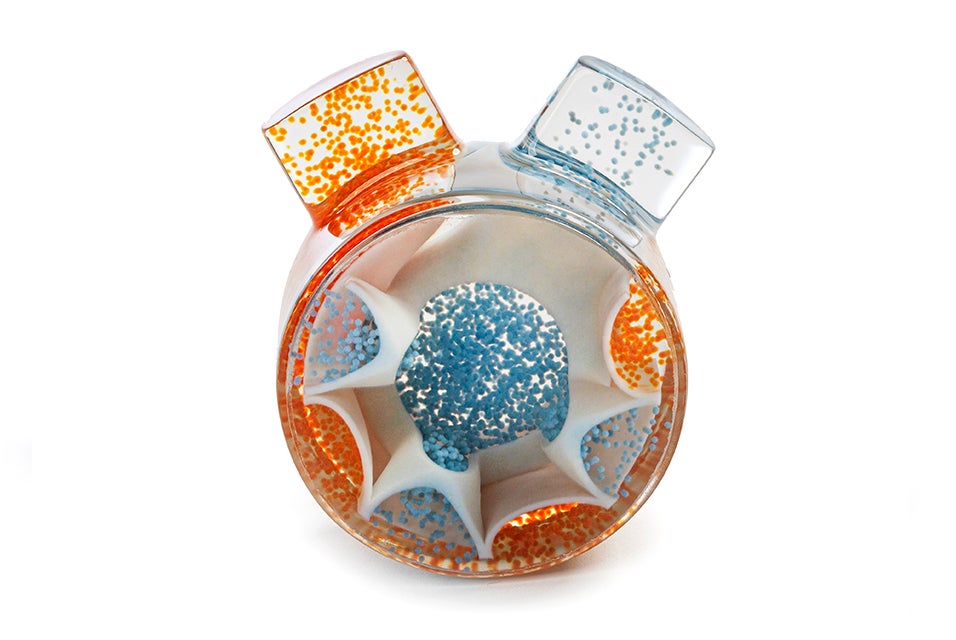

VeroClear is a rigid, transparent material that offers high dimensional stability and exceptional surface detail. It is ideal for concept modeling and form- and fit-testing of clear parts.
主な特徴
- Transparent, rigid material
- High level of surface detail
- Can be combined with colored PolyJet materials
- Max part dimensions: 490 x 390 x 200 mm
Agilus
技術
PolyJet
詳細

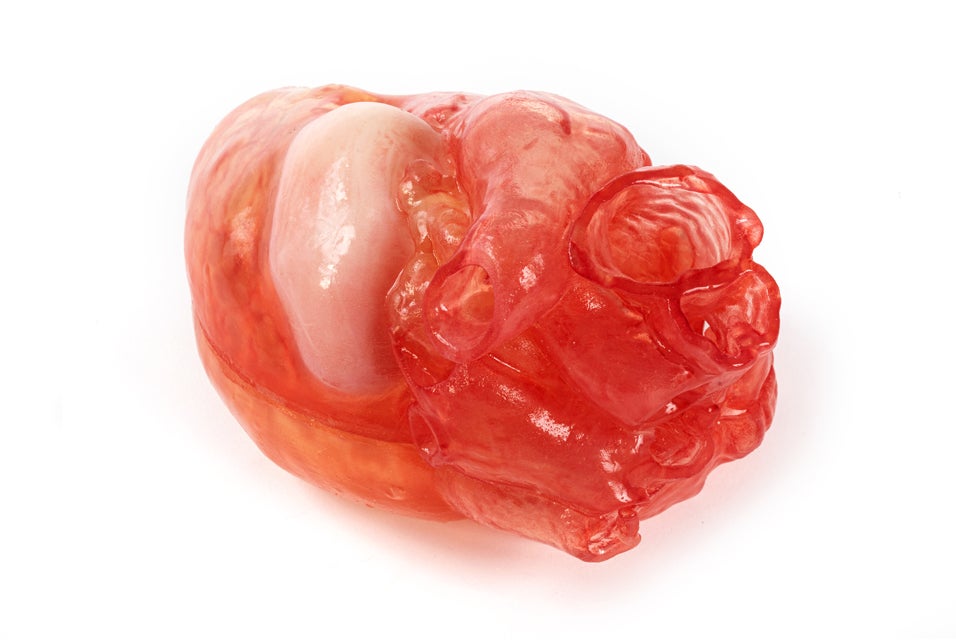

Agilus is a flexible, rubber-like resin with superior tear-resistance, elongation, and tensile strength. It is ideal for advanced design verification and prototyping of soft-touch components.
主な特徴
- Flexible, rubber-like material
- Very high elongation at break
- Good tear resistance
- Max part dimensions: 350 x 250 x 100 mm
Composite Materials
技術
PolyJet
詳細
Flexible, rubber-like Agilus is blended with VeroWhite to offer a range of composite materials with pre-defined Shore values and mechanical properties, providing options for a variety of applications.
主な特徴
- Pre-defined blends of Agilus and VeroWhite
- The addition of VeroWhite influences Agilus' tensile strength and tear resistance
- Different Shore A hardness values are available
- Max part dimensions: 350 x 250 x 100 mm
