PC-ISO

PC-ISO is a biocompatible polycarbonate material known for its high strength and stiffness. Its versatility, durability, and dimensional stability are ideal for everything from prototyping in aerospace and automotive to small series of end-use medtech parts. Combining these traits with excellent heat and chemical resistance, PC-ISO is also an ideal solution for challenging environments and applications requiring sterilization.

Talk to our team

A white, square, open-bottomed box printed in PC-ISO using fused deposition modeling.

A white square and lid 3D printed in PC-ISO using fused deposition modeling.

技術仕様

Maximum part dimensions	914 x 610 x 914 mm
Standard accuracy	±0.15% (with a lower limit on ±0.2 mm)
Layer thickness	0.18 – 0.33 mm
Minimum wall thickness	1 mm
Minimum detail size	0.3 mm
Interlocking or moving parts	No
Internal channels	No
Surface structure	Rough surface with visible layers

データシート

パラメーター	価値	単位	方法
Density ASTM D792	1.20	g/cm³	ASTM D792
Tensile strength ASTM D638	57	MPa	ASTM D638
Tensile modulus ASTM D638	2,000	MPa	ASTM D638
Flexural strength ASTM D790	90	MPa	ASTM D790
Flexural modulus ASTM D790	2,100	MPa	ASTM D790
Impact strength ASTM D256 (Notched, Izod)	86	J/m	ASTM D256 (Notched, Izod)
Elongation at break ASTM D638	4	%	ASTM D638
Heat deflection temperature ASTM D648 (@1.81 MPa)	127	°C	ASTM D648 (@1.81 MPa)
Glass transition temperature DMA (SSYS)	161	°C	DMA (SSYS)

Actual values may vary with build conditions and in relation to the part’s geometry and orientation.

Please get in touch with our team for more information and guidance.

PDFをダウンロードする

Finishing Degrees

The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

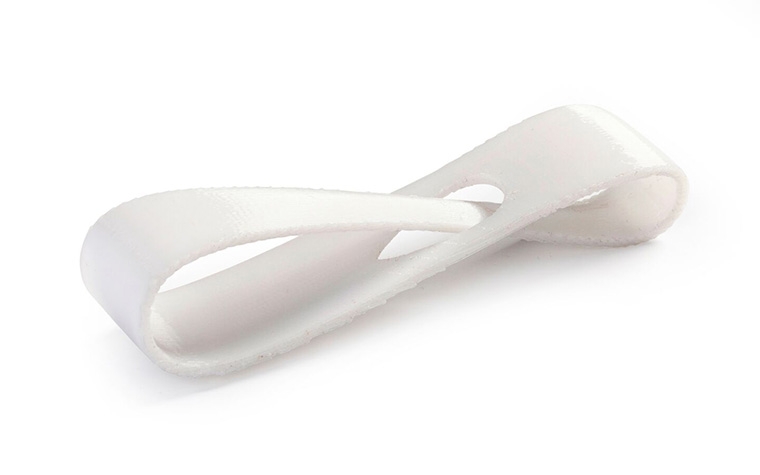

Normal
