LINEE GUIDA PER LA PROGETTAZIONE

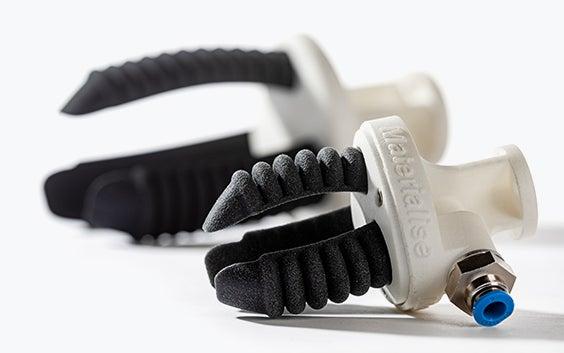

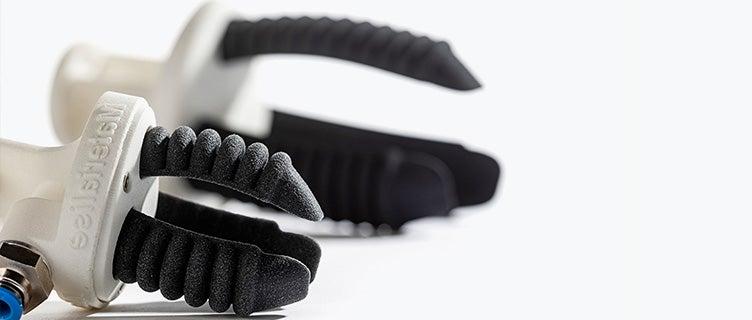

Ultrasint TPU 90A-01
General guidelines
Wall thickness
In general, we recommend a wall thickness of at least 1 mm. Large parts may require larger wall thicknesses or added ribs or fillets for reinforcement.
Hollowing
We advise hollowing out a solid model as much as possible, and when the wall thickness exceeds 20 mm. We recommend a wall thickness of 1-2 mm and the inclusion of at least two holes with a minimum diameter of 10 mm for powder removal.
Holes
It is possible to create holes or perforations and ducts. The recommended minimum diameter size of these holes is 2 mm but some post-production will be needed to remove excess powder. Some residual powder may be stuck on the inside of complex ducts. It is advised to design a strip or chain through the duct to help in dislodging the powder once the part has been printed. In general, complex holes or ducts require larger diameters in order to achieve thorough removal of the unfused powder.
Interlocking or moving parts
It is possible to print interlocking parts and assemblies in a single build. Parts that are printed together should have a minimum clearance of 0.5 mm.
Lattice structures
Lattice structures allow you to modify shock absorption characteristics, as well as to reduce weight and material. Keep in mind that you must maintain a minimum gap of 5 mm between the lattice beams so the unfused powder can be removed.
Embossed and engraved details
For embossed or engraved textures, we advise a minimum thickness of 0.25 mm. For legible engraved or embossed text, we recommend letters with a minimum line thickness of 0.5 mm, a depth of 1 mm, and an overall height of at least 2.5 mm.
File requirements
We accept file formats STL, 3DS, 3DM, OBJ, WRL, MATPART, STP, SKP, SLDPRT, STEP, CATPART, IGES, MODEL, MXP, and MGX on Materialise OnSite.
As well as the need to respect these file formats, there are also constraints related to the content of those files. To deliver the best possible quality and ensure traceability, we only allow one model per part to be ordered via our online platform OnSite.
This means per file, there can only be one shell. If there are multiple shells in one file, we will only process it as it is recognized as one model or part meaning that the shells are intersecting or interlocking each other (if applicable see the technical specifications below). Otherwise your part will not be processed correctly.
Specifiche tecniche
| Dimensioni massime del pezzo | 370 x 274 x 375 mm |
| Precisione standard | ±0,9% (XY) fino a ±1,8% (Z) con limiti inferiori a ±1 mm (XY) fino a ±1,5 mm (Z) |
| Spessore del layer di stampa | 0,1 mm |
| Spessore minimo della parete | 1 mm |
| Dimensione minima del dettaglio | 0,5 mm |
| Pezzi mobili o collegati | Sì |
| Canali interni | Sì |
| Struttura della superficie | Struttura granulosa di colore grigio pietra |
